Detailed introduction

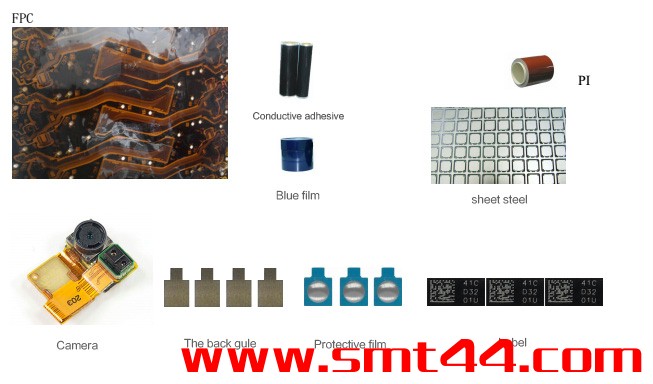

The design is used to attach steel sheets to FPC on the micro tape rolling mode. Based on HPA4025F, we develop and increase the function of automatic separating and separating sheets (film) to replace manual operation, improve production efficiency
1、Both Sticking head and theplatform can be heated,available for PI over 0.2mm thickness
2、Can make the online programming manually, alsocan input DXF documents directly to switch other products fast
3、Faster,more efficient,smaller(effetive area smaller)
4、Have the same function ofsaving material (Such as PI etc)
Dimension:1510*1420*1750(mm)
Weight:1800KG
Platform size:Effective working area 400*280(mm)
Applicative type:PI
Applicative size:(4.0~30mm)*4.0~30mm)
Applicative thickness:0.1~0.4mm(withour glue)
Sticking Precision:±0.1mm
Sticking Speed:1.1 sec/pcs
Sticking Head Temperature:90~170℃
Platform Temperature:Within 150℃
Purification:Level of 100000
Working Humidity:40%~70%
